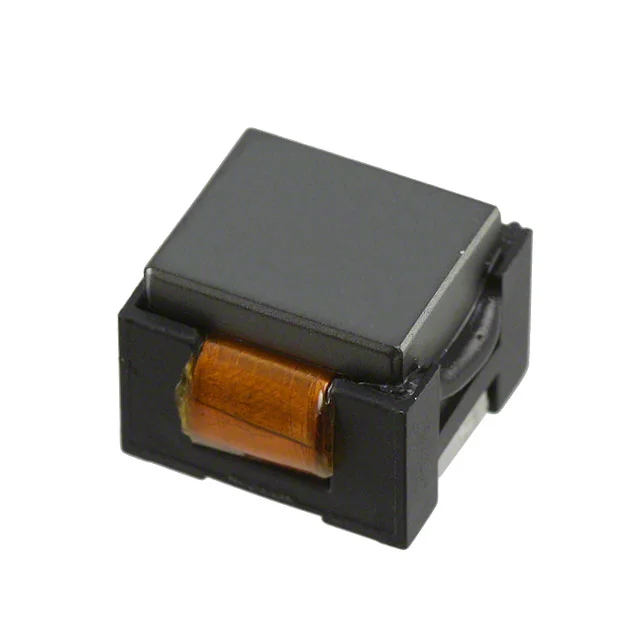

FIXED IND 870NH 28.01A 1.23 MOHM
| Inductance | 870 nH |
| Tolerance | ±15% |
| Current Rating | 28.01 A |
| DC Resistance (DCR) | 1.23mOhm Max |
| saturationCurrent | 21A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.512" L x 0.512" W (13.00mm x 13.00mm) |
| Case / Size | Nonstandard |
| Supplier | Eaton - Electronics Division,WEC |
| Description | FIXED IND 870NH 28.01A 1.23 MOHM |
| Series | HC1 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 300 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.394" (10.00mm) |
| features | - |
