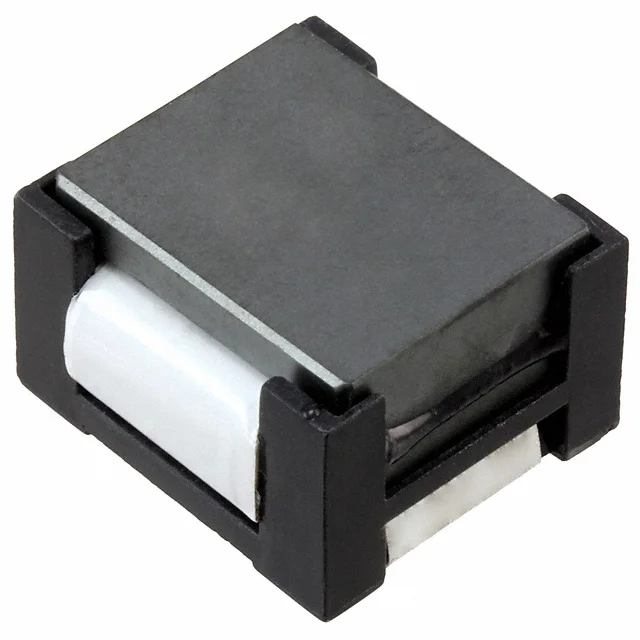

FIXED IND 4.7UH 17A 4.6 MOHM SMD
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating | 17 A |
| DC Resistance (DCR) | 4.6mOhm Max |
| saturationCurrent | 21.25A |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.756" L x 0.748" W (19.20mm x 19.00mm) |
| Case / Size | Nonstandard |
| Supplier | WEC,Eaton - Electronics Division |
| Description | FIXED IND 4.7UH 17A 4.6 MOHM SMD |
| Series | HC2 |
| productStatus | Obsolete |
| typeConstruction | Wirewound |
| coreMaterial | - |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 300 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.500" (12.70mm) |
| features | - |
