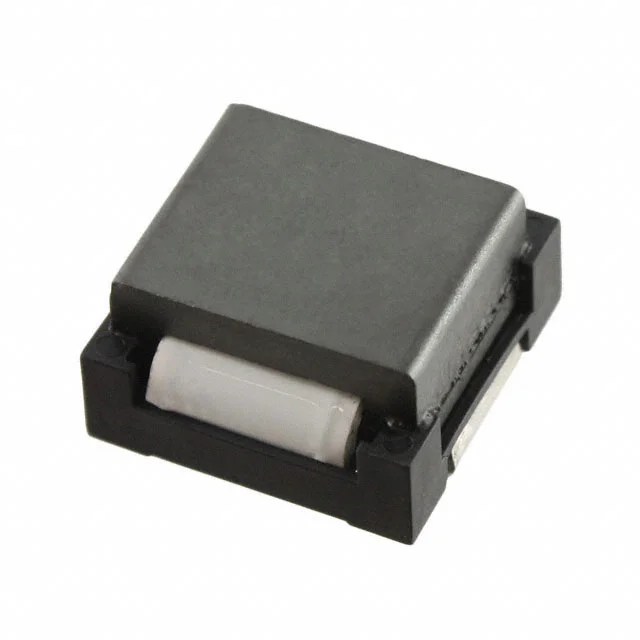

FIXED IND 470NH 52.9A 0.6 MOHM
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating | 52.9 A |
| DC Resistance (DCR) | 0.6mOhm Max |
| saturationCurrent | 63.75A |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.756" L x 0.756" W (19.20mm x 19.20mm) |
| Case / Size | Nonstandard |
| Supplier | WEC,Eaton - Electronics Division |
| Description | FIXED IND 470NH 52.9A 0.6 MOHM |
| Series | HC2LP |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 300 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.440" (11.18mm) |
| features | - |
