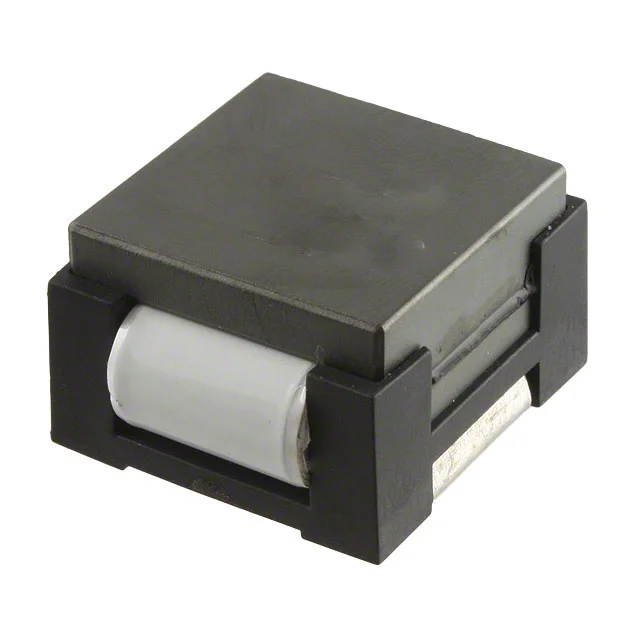

FIXED IND 3.3UH 42.45A 1.2 MOHM
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating | 42.45 A |
| DC Resistance (DCR) | 1.2mOhm Max |
| saturationCurrent | 46A |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 1.181" L x 0.996" W (30.00mm x 25.30mm) |
| Case / Size | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 3.3UH 42.45A 1.2 MOHM |
| Series | HC3 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 300 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.689" (17.50mm) |
| features | - |
