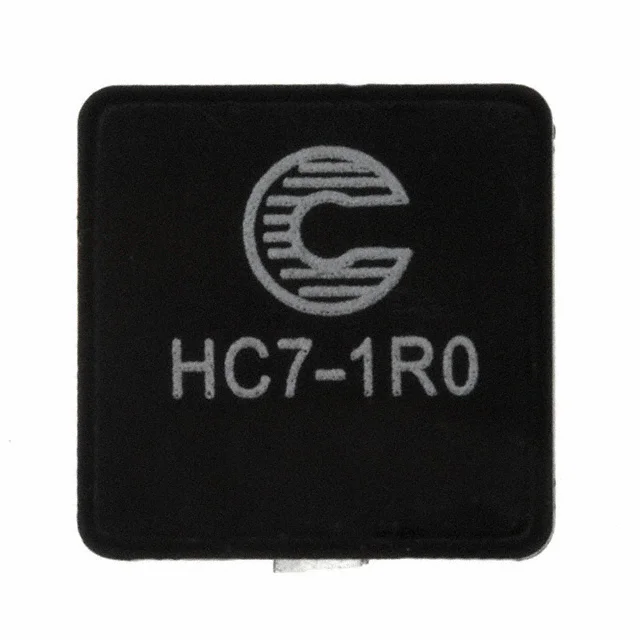

FIXED IND 1UH 20.3A 2.1 MOHM SMD
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating | 20.3 A |
| DC Resistance (DCR) | 2.1mOhm Max |
| saturationCurrent | 37.1A |
| Operating Temperature | -40°C ~ 155°C |
| Dimensions | 0.543" L x 0.512" W (13.80mm x 13.00mm) |
| Case / Size | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 1UH 20.3A 2.1 MOHM SMD |
| Series | HC7 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Iron Powder |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.217" (5.50mm) |
| features | - |
