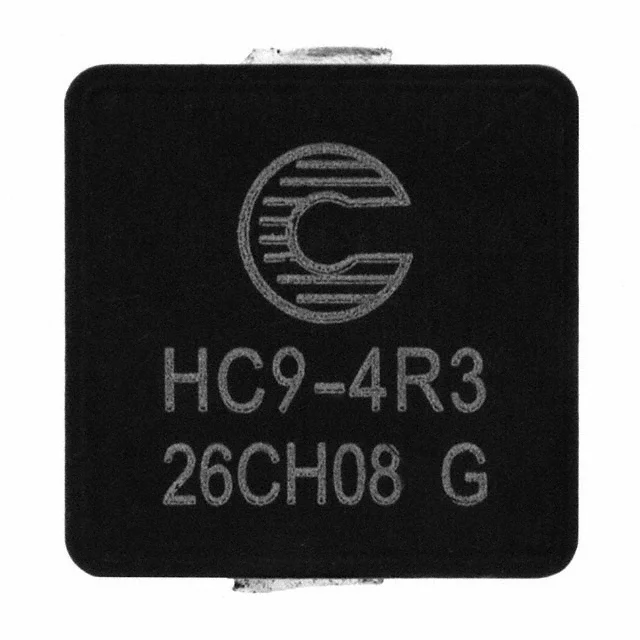

FIXED IND 4.3UH 13A 5.9 MOHM SMD
| Inductance | 4.3 µH |
| Tolerance | ±15% |
| Current Rating | 13 A |
| DC Resistance (DCR) | 5.9mOhm Max |
| saturationCurrent | 19.1A |
| Operating Temperature | -40°C ~ 155°C |
| Dimensions | 0.555" L x 0.516" W (14.10mm x 13.10mm) |
| Case / Size | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 4.3UH 13A 5.9 MOHM SMD |
| Series | HC9 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Iron Powder |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.295" (7.50mm) |
| features | - |
