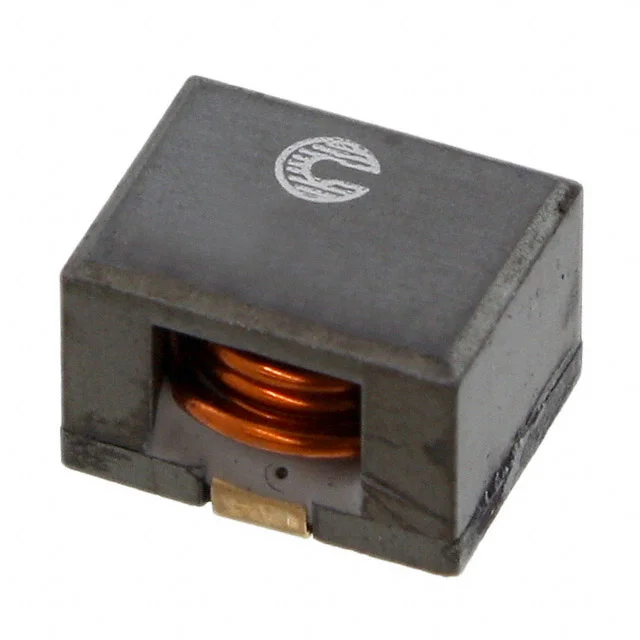

FIXED IND 1UH 16A 2.65 MOHM SMD
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating | 16 A |
| DC Resistance (DCR) | 2.65mOhm |
| saturationCurrent | 26A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.398" L x 0.307" W (10.10mm x 7.80mm) |
| Case / Size | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 1UH 16A 2.65 MOHM SMD |
| Series | HCF1007 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.262" (6.65mm) |
| features | - |
