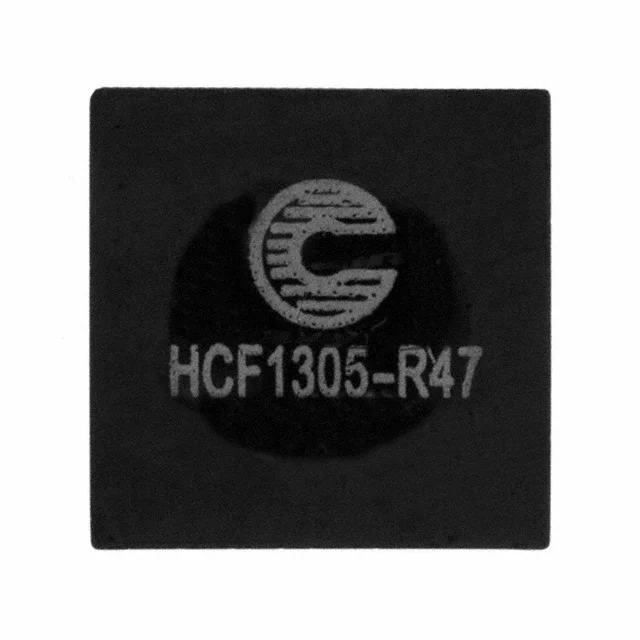

FIXED IND 470NH 32A 1 MOHM SMD
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating | 32 A |
| DC Resistance (DCR) | 1mOhm Max |
| saturationCurrent | 36A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Case / Size | Nonstandard |
| Supplier | Eaton - Electronics Division,WEC |
| Description | FIXED IND 470NH 32A 1 MOHM SMD |
| Series | HCF1305 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.197" (5.00mm) |
| features | - |
