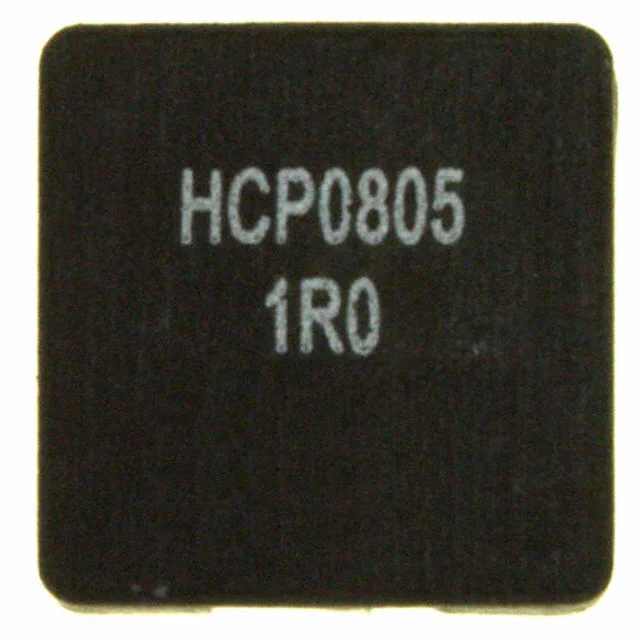

FIXED IND 1UH 14.5A 5.8 MOHM SMD
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating | 14.5 A |
| DC Resistance (DCR) | 5.8mOhm |
| saturationCurrent | 22A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.303" L x 0.291" W (7.70mm x 7.40mm) |
| Case / Size | Nonstandard |
| Supplier | Eaton - Electronics Division,WEC |
| Description | FIXED IND 1UH 14.5A 5.8 MOHM SMD |
| Series | HCP0805 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Iron Powder |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.197" (5.00mm) |
| features | - |
