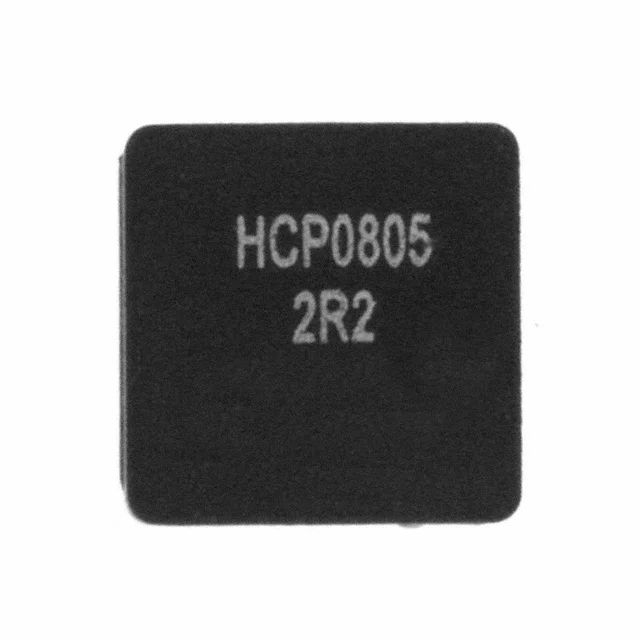

Description
FIXED IND 2.2UH 10A 11.2 MOHM
Specifications
Inductance
2.2 µH
Current Rating
10 A
DC Resistance (DCR)
11.2mOhm
Dimensions
0.303" L x 0.291" W (7.70mm x 7.40mm)
Product Attributes
Manufacturer Verified
Last verified: 6/15/2026| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating | 10 A |
| DC Resistance (DCR) | 11.2mOhm |
| saturationCurrent | 14A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.303" L x 0.291" W (7.70mm x 7.40mm) |
| Case / Size | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 2.2UH 10A 11.2 MOHM |
| Series | HCP0805 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Iron Powder |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.197" (5.00mm) |
| features | - |
