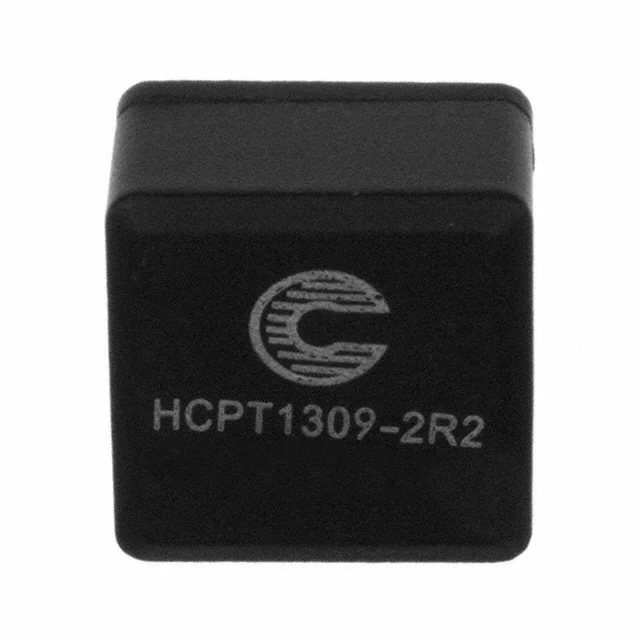

FIXED IND 2.27UH 12.5A 4.1 MOHM
| Inductance | 2.27 µH |
| Tolerance | ±20% |
| Current Rating | 12.5 A |
| DC Resistance (DCR) | 4.1mOhm |
| saturationCurrent | 25A |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.531" L x 0.465" W (13.50mm x 11.80mm) |
| Case / Size | Radial, Horizontal |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 2.27UH 12.5A 4.1 MOHM |
| Series | HCPT1309 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Iron Powder |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.354" (9.00mm) |
| features | - |
