Description

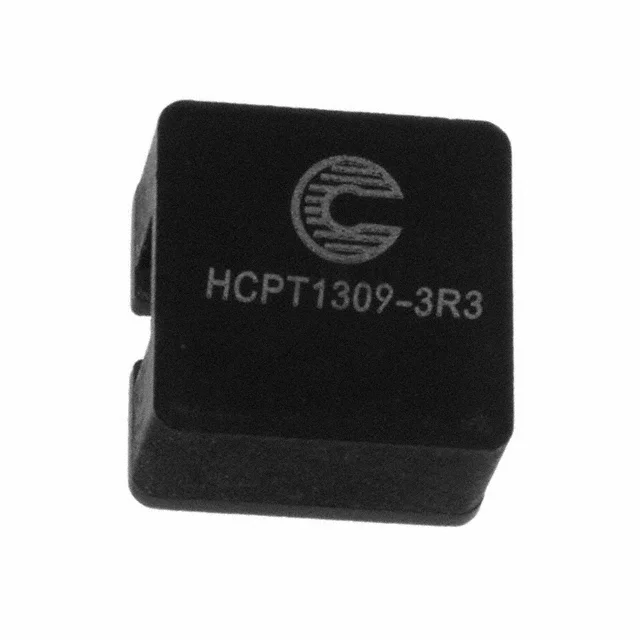

FIXED IND 3.31UH 11.4A 4.8 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for HCPT1309-3R3-R.
HCPT1309-3R3-R has an inductance value of 3.31 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
HCPT1309-3R3-R is rated for 11.4 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
HCPT1309-3R3-R lists a DC resistance of 4.8mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
HCPT1309-3R3-R uses a package or case of Radial, Horizontal. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from HCPT1309-3R3-R to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 3.31 µH |
| Tolerance | ±20% |
| Current Rating | 11.4 A |
| DC Resistance (DCR) | 4.8mOhm |
| Saturation Current | 21A |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.531" L x 0.465" W (13.50mm x 11.80mm) |
| Case / Size | Radial, Horizontal |
| Package / Case | Radial, Horizontal |
| Supplier | WEC,Eaton - Electronics Division |
| Description | FIXED IND 3.31UH 11.4A 4.8 MOHM |
| Series | HCPT1309 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Iron Powder |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.354" (9.00mm) |
