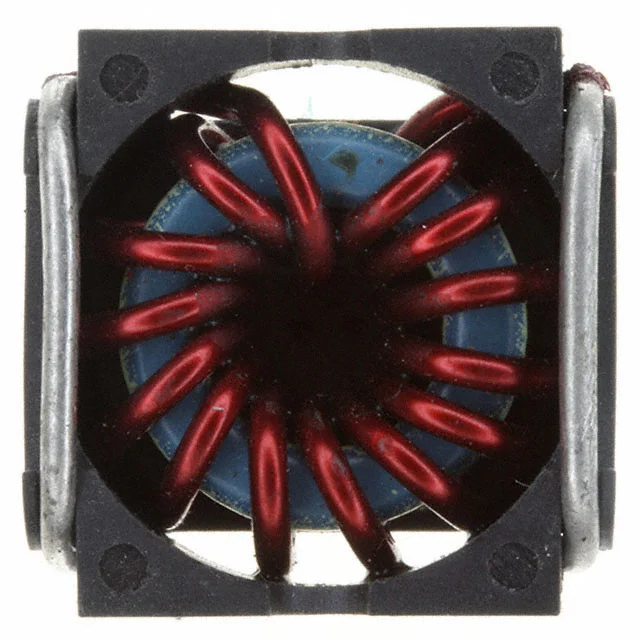

FIXED IND 6.5UH 12A 6.6 MOHM SMD
| Inductance | 6.5 µH |
| Tolerance | ±25% |
| Current Rating | 12 A |
| DC Resistance (DCR) | 6.6mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -30°C ~ 130°C |
| Dimensions | 0.740" L x 0.740" W (18.80mm x 18.80mm) |
| Case / Size | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 6.5UH 12A 6.6 MOHM SMD |
| Series | HCTR |
| productStatus | Active |
| typeConstruction | Toroidal |
| coreMaterial | Iron Powder |
| shielding | Shielded |
| qFactor | 25 @ 100kHz |
| selfResonantFreq | 55MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.400" (10.16mm) |
