Description

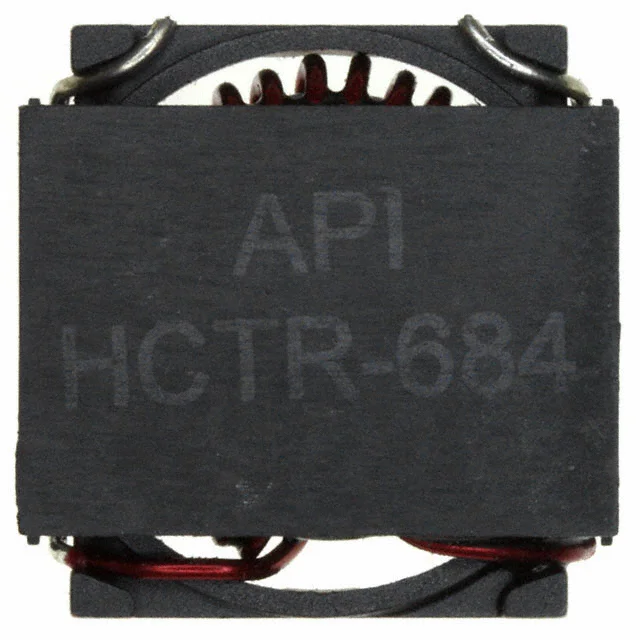

FIXED IND 29UH 6.57A 25 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for HCTR-684.
HCTR-684 has an inductance value of 29 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
HCTR-684 is rated for 6.57 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
HCTR-684 lists a DC resistance of 25mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
HCTR-684 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from HCTR-684 to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 29 µH |
| Tolerance | ±25% |
| Current Rating | 6.57 A |
| DC Resistance (DCR) | 25mOhm Max |
| Operating Temperature | -30°C ~ 130°C |
| Dimensions | 0.945" L x 0.940" W (24.00mm x 23.88mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 29UH 6.57A 25 MOHM SMD |
| Series | HCTR |
| Product Status | Active |
| Type / Construction | Toroidal |
| Core Material | Iron Powder |
| Shielding | Shielded |
| Q @ Frequency | 30 @ 100kHz |
| Self Resonant Frequency | 16MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.400" (10.16mm) |
