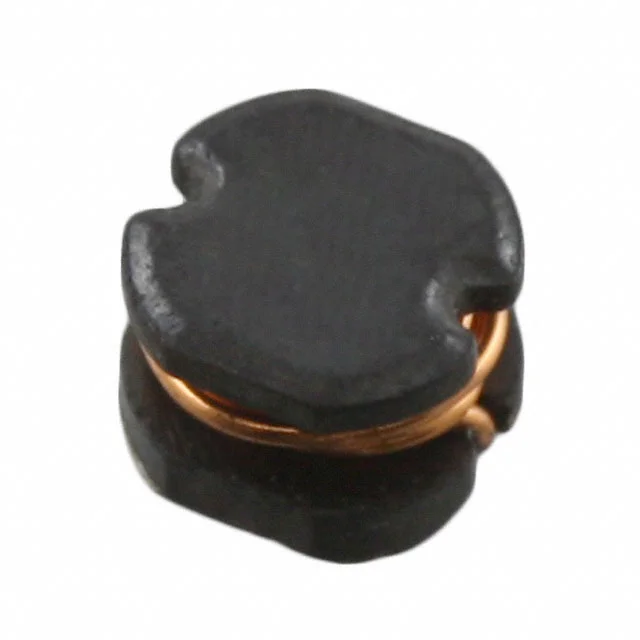

FIXED IND 2.2UH 2.22A 47 MOHM
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating | 2.22 A |
| DC Resistance (DCR) | 47mOhm Max |
| saturationCurrent | 2.76A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.177" L x 0.157" W (4.50mm x 4.00mm) |
| Case / Size | Nonstandard |
| Supplier | WEC,Eaton - Electronics Division |
| Description | FIXED IND 2.2UH 2.22A 47 MOHM |
| Series | LD |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.126" (3.20mm) |
| features | - |
