Description

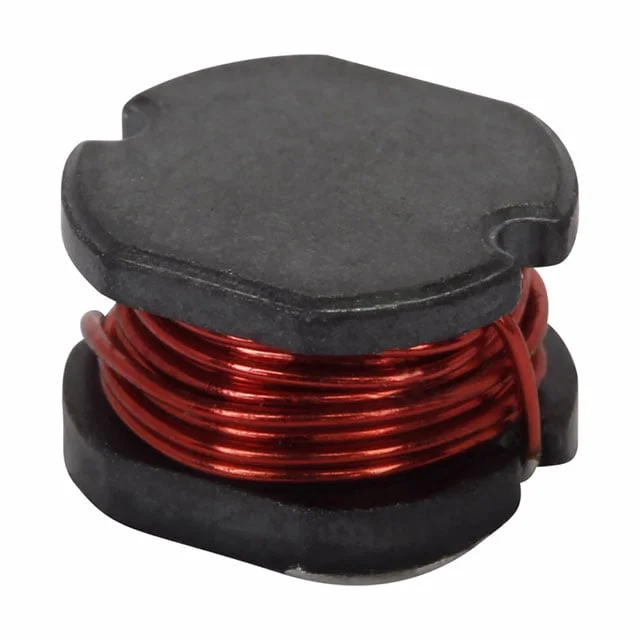

FIXED IND 1MH 440MA 4 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for LD2-102-HV.
LD2-102-HV has an inductance value of 1 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
LD2-102-HV is rated for 440 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
LD2-102-HV lists a DC resistance of 4Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
LD2-102-HV uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from LD2-102-HV to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 1 mH |
| Tolerance | ±20% |
| Current Rating | 440 mA |
| DC Resistance (DCR) | 4Ohm Max |
| Saturation Current | 360mA |
| Operating Temperature | -25°C ~ 125°C |
| Dimensions | 0.307" L x 0.276" W (7.80mm x 7.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 1MH 440MA 4 OHM SMD |
| Series | LD2-HV |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.209" (5.30mm) |
