Description

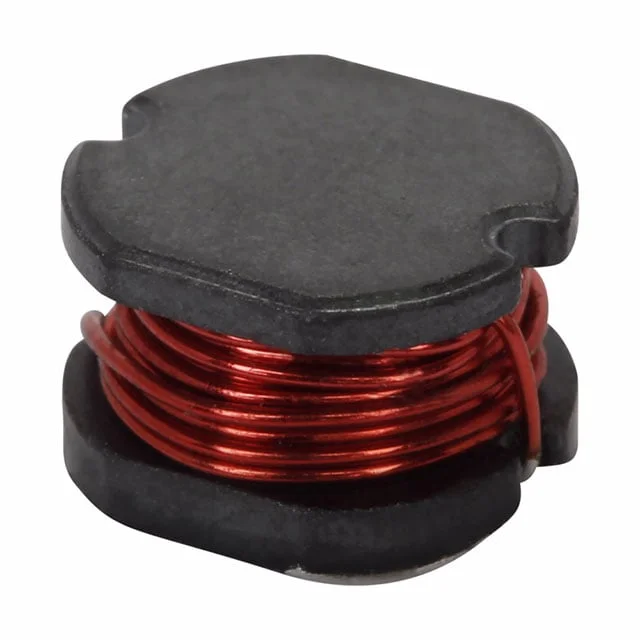

FIXED IND 1.5UH 17 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for LD2-1R5-HV.
LD2-1R5-HV has an inductance value of 1.5 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
LD2-1R5-HV lists a DC resistance of 17mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
LD2-1R5-HV uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from LD2-1R5-HV to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 1.5 µH |
| Tolerance | ±30% |
| DC Resistance (DCR) | 17mOhm Max |
| Saturation Current | 5.5A |
| Operating Temperature | -25°C ~ 125°C |
| Dimensions | 0.307" L x 0.276" W (7.80mm x 7.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 1.5UH 17 MOHM SMD |
| Series | LD2-HV |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.209" (5.30mm) |
