Description

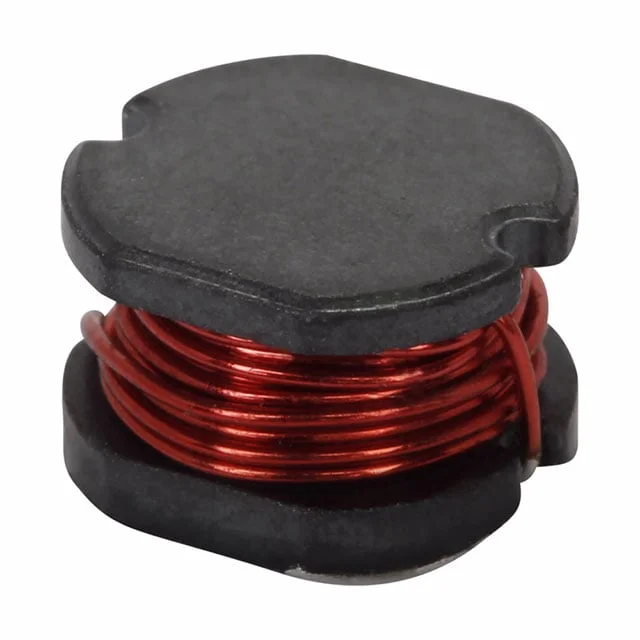

FIXED IND 330UH 1.42 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for LD2-331-HV.
LD2-331-HV has an inductance value of 330 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
LD2-331-HV lists a DC resistance of 1.42Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
LD2-331-HV uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from LD2-331-HV to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 330 µH |
| Tolerance | ±20% |
| DC Resistance (DCR) | 1.42Ohm Max |
| Saturation Current | 400mA |
| Operating Temperature | -25°C ~ 125°C |
| Dimensions | 0.307" L x 0.276" W (7.80mm x 7.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 330UH 1.42 OHM SMD |
| Series | LD2-HV |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.209" (5.30mm) |
