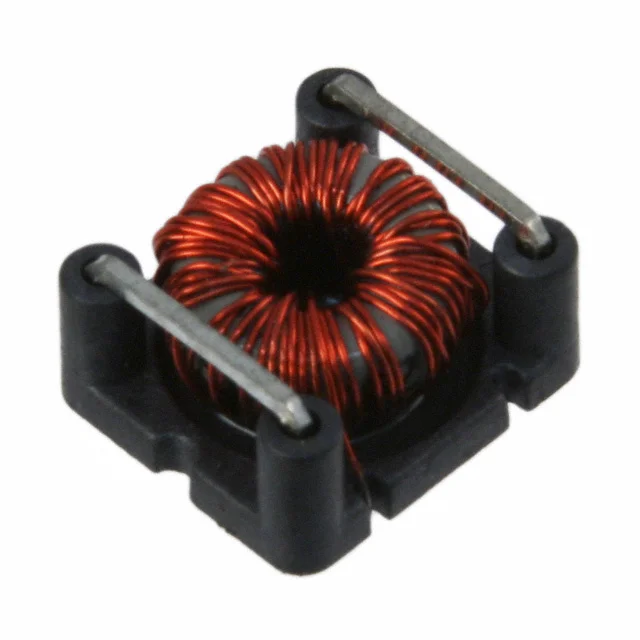

Description
FIXED IND 200UH 795MA 400 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for LLST-200.
LLST-200 has an inductance value of 200 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
LLST-200 is rated for 795 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
LLST-200 lists a DC resistance of 400mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
LLST-200 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from LLST-200 to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 200 µH |
| Tolerance | ±15% |
| Current Rating | 795 mA |
| DC Resistance (DCR) | 400mOhm Max |
| Saturation Current | 460mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.475" L x 0.420" W (12.07mm x 10.67mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 200UH 795MA 400 MOHM |
| Series | LLST |
| Product Status | Obsolete |
| Type / Construction | Toroidal |
| Core Material | Nickel Iron |
| Shielding | Shielded |
| Self Resonant Frequency | 3.2MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.290" (7.37mm) |
