Description

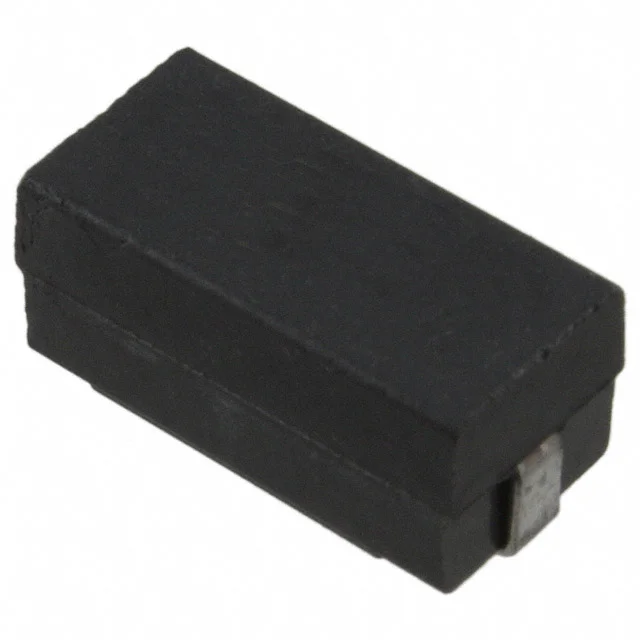

FIXED IND 680NH 5.7A 11 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for M27/367-07.
M27/367-07 has an inductance value of 680 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
M27/367-07 is rated for 5.7 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
M27/367-07 lists a DC resistance of 11mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
M27/367-07 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from M27/367-07 to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 680 nH |
| Tolerance | ±15% |
| Current Rating | 5.7 A |
| DC Resistance (DCR) | 11mOhm Max |
| Saturation Current | 5.7A |
| Operating Temperature | -55°C ~ 130°C |
| Dimensions | 0.520" L x 0.250" W (13.21mm x 6.35mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 680NH 5.7A 11 MOHM SMD |
| Series | Military, MIL-PRF-27/367, MIL4922 |
| Product Status | Active |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.230" (5.84mm) |
