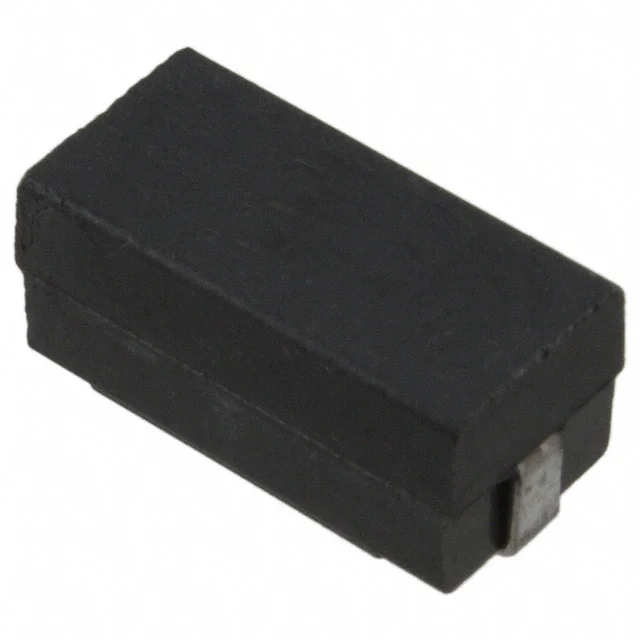

FIXED IND 1.8UH 4.34A 21 MOHM
| Inductance | 1.8 µH |
| Tolerance | ±15% |
| Current Rating | 4.34 A |
| DC Resistance (DCR) | 21mOhm Max |
| saturationCurrent | 4.34A |
| Operating Temperature | -55°C ~ 130°C |
| Dimensions | 0.520" L x 0.250" W (13.21mm x 6.35mm) |
| Case / Size | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 1.8UH 4.34A 21 MOHM |
| Series | Military, MIL-PRF-27/367, MIL4922 |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.230" (5.84mm) |
| features | - |
