Description

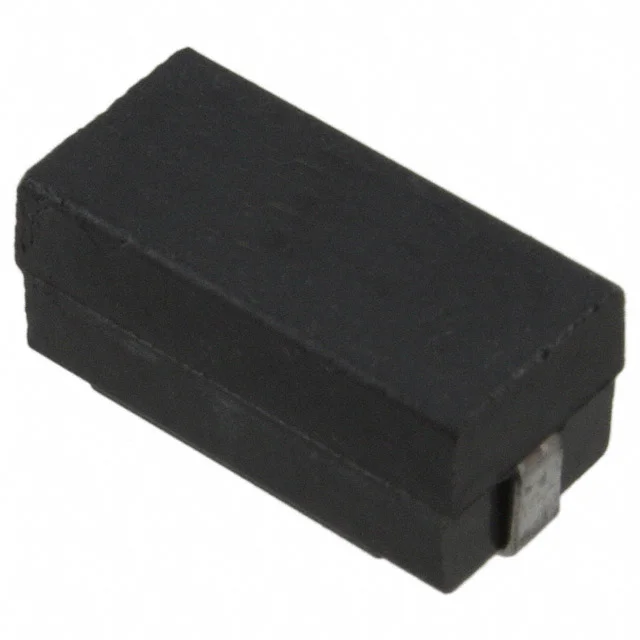

FIXED IND 1MH 240MA 6.9 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for M27/367-45.
M27/367-45 has an inductance value of 1 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
M27/367-45 is rated for 240 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
M27/367-45 lists a DC resistance of 6.9Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
M27/367-45 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from M27/367-45 to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 1 mH |
| Tolerance | ±15% |
| Current Rating | 240 mA |
| DC Resistance (DCR) | 6.9Ohm Max |
| Saturation Current | 240mA |
| Operating Temperature | -55°C ~ 130°C |
| Dimensions | 0.520" L x 0.250" W (13.21mm x 6.35mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 1MH 240MA 6.9 OHM SMD |
| Series | Military, MIL-PRF-27/367, MIL4922 |
| Product Status | Active |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.230" (5.84mm) |
