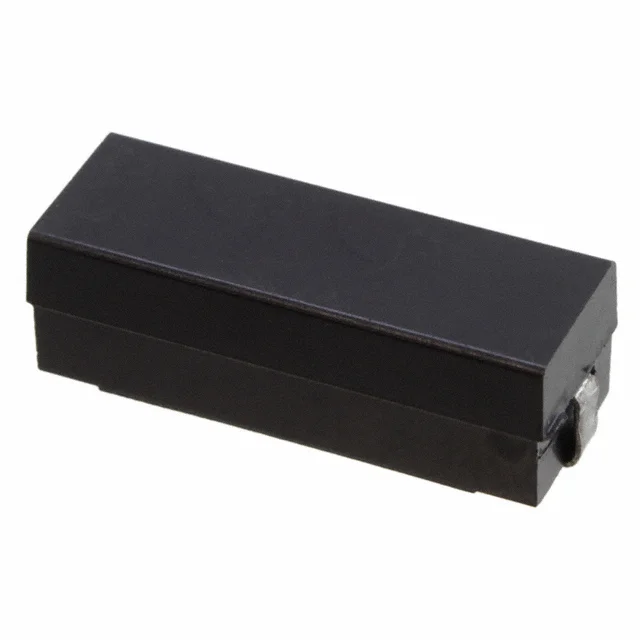

FIXED IND 1UH 6.27A 9 MOHM SMD
| Inductance | 1 µH |
| Tolerance | ±15% |
| Current Rating | 6.27 A |
| DC Resistance (DCR) | 9mOhm Max |
| saturationCurrent | 6.4A |
| Operating Temperature | -55°C ~ 130°C |
| Dimensions | 0.880" L x 0.330" W (22.35mm x 8.38mm) |
| Case / Size | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 1UH 6.27A 9 MOHM SMD |
| Series | Military, MIL-PRF-27/370, MIL8532 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.286" (7.26mm) |
| features | - |
