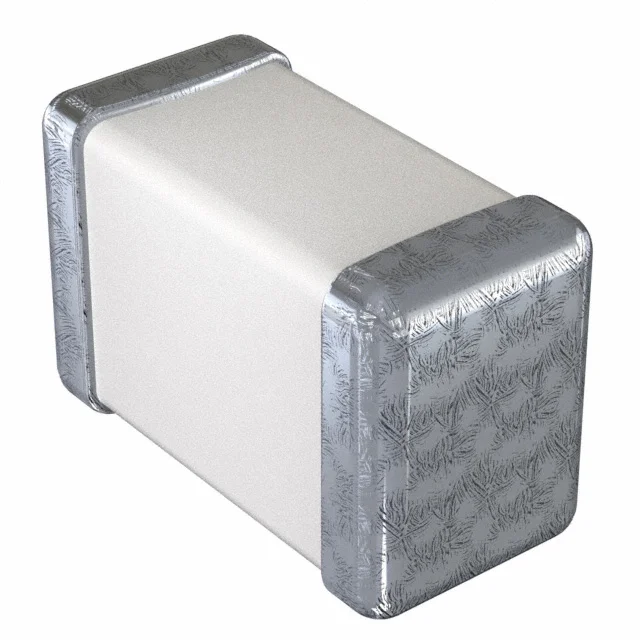

FIXED IND 18NH 300MA 600 MOHM
| Inductance | 18 nH |
| Tolerance | ±5% |
| Current Rating | 300 mA |
| DC Resistance (DCR) | 600mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Case / Size | 0402 (1005 Metric) |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 18NH 300MA 600 MOHM |
| Series | MCL1005 |
| productStatus | Active |
| typeConstruction | Multilayer |
| coreMaterial | - |
| shielding | Unshielded |
| qFactor | 8 @ 100MHz |
| selfResonantFreq | 2.1GHz |
| ratings | - |
| testFrequency | 100 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0402 |
| heightMax | 0.026" (0.65mm) |
| features | - |
