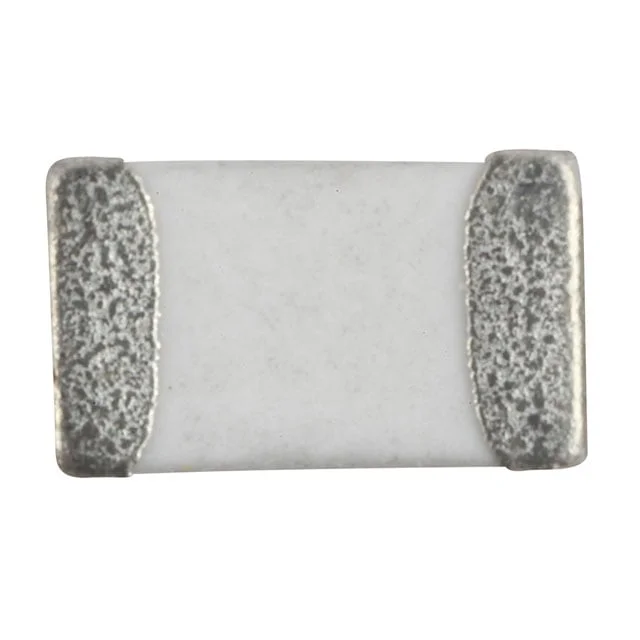

FIXED IND 390NH 300MA 2 OHM SMD
| Inductance | 390 nH |
| Tolerance | ±5% |
| Current Rating | 300 mA |
| DC Resistance (DCR) | 2Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Case / Size | 0805 (2012 Metric) |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 390NH 300MA 2 OHM SMD |
| Series | MCL2012V2 |
| productStatus | Active |
| typeConstruction | Multilayer |
| coreMaterial | - |
| shielding | Unshielded |
| qFactor | 10 @ 50MHz |
| selfResonantFreq | 250MHz |
| ratings | - |
| testFrequency | 50 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0805 |
| heightMax | 0.043" (1.10mm) |
| features | - |
