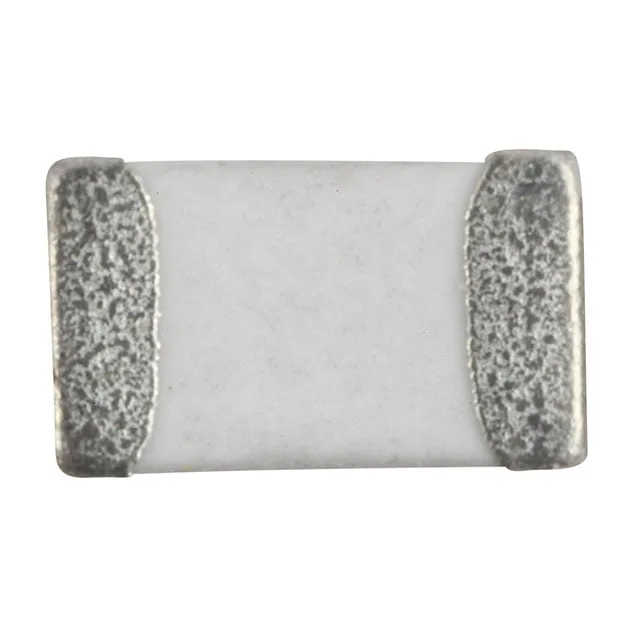

Description
FIXED IND 6.8NH 500MA 250 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for MCL2012V2-6R8-R.
MCL2012V2-6R8-R has an inductance value of 6.8 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
MCL2012V2-6R8-R is rated for 500 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
MCL2012V2-6R8-R lists a DC resistance of 250mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
MCL2012V2-6R8-R uses a package or case of 0805 (2012 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from MCL2012V2-6R8-R to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 6.8 nH |
| Tolerance | ±5% |
| Current Rating | 500 mA |
| DC Resistance (DCR) | 250mOhm Max |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Case / Size | 0805 (2012 Metric) |
| Package / Case | 0805 (2012 Metric) |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 6.8NH 500MA 250 MOHM |
| Series | MCL2012V2 |
| Product Status | Active |
| Type / Construction | Multilayer |
| Shielding | Unshielded |
| Q @ Frequency | 15 @ 100MHz |
| Self Resonant Frequency | 3GHz |
| Inductance Test Frequency | 100 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 |
| Height - Seated (Max) | 0.043" (1.10mm) |
