Description

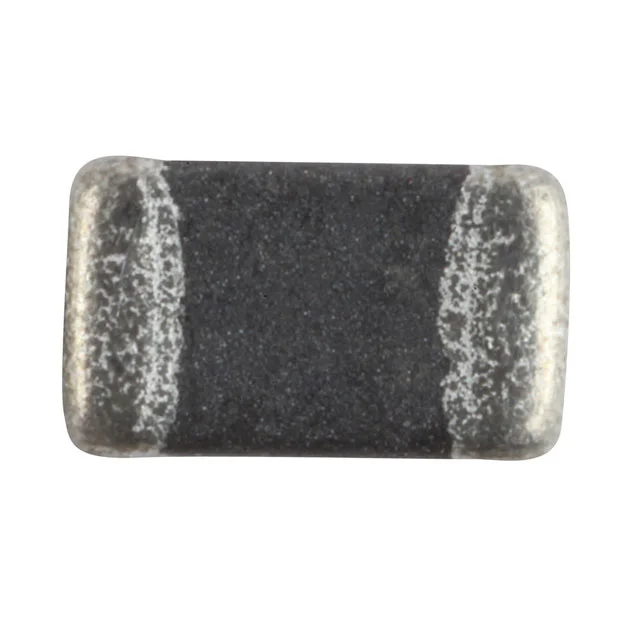

FIXED IND 3.4NH 300MA 380 MOHM
Specifications
Inductance
3.4 nH
Current Rating
300 mA
DC Resistance (DCR)
380mOhm Max
Dimensions
0.024" L x 0.012" W (0.60mm x 0.30mm)
Product Attributes
Manufacturer Verified
Last verified: 6/15/2026| Inductance | 3.4 nH |
| Tolerance | ±0.3nH |
| Current Rating | 300 mA |
| DC Resistance (DCR) | 380mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Case / Size | 0201 (0603 Metric) |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 3.4NH 300MA 380 MOHM |
| Series | MCL2V |
| productStatus | Active |
| typeConstruction | Multilayer |
| coreMaterial | Ceramic |
| shielding | Unshielded |
| qFactor | 14 @ 500MHz |
| selfResonantFreq | 8.1GHz |
| ratings | - |
| testFrequency | 500 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0201 |
| heightMax | 0.013" (0.33mm) |
| features | - |
