Description

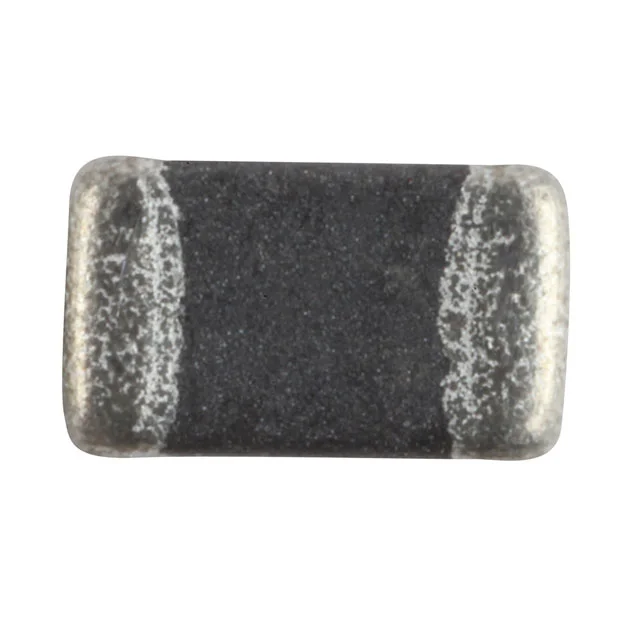

FIXED IND 47NH 100MA 2.6 OHM SMD
Specifications
Inductance
47 nH
Current Rating
100 mA
DC Resistance (DCR)
2.6Ohm Max
Dimensions
0.024" L x 0.012" W (0.60mm x 0.30mm)
Product Attributes
Manufacturer Verified
Last verified: 6/15/2026| Inductance | 47 nH |
| Tolerance | ±5% |
| Current Rating | 100 mA |
| DC Resistance (DCR) | 2.6Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Case / Size | 0201 (0603 Metric) |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 47NH 100MA 2.6 OHM SMD |
| Series | MCL2V |
| productStatus | Active |
| typeConstruction | Multilayer |
| coreMaterial | Ceramic |
| shielding | Unshielded |
| qFactor | 12 @ 300MHz |
| selfResonantFreq | 1.5GHz |
| ratings | - |
| testFrequency | 300 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0201 |
| heightMax | 0.013" (0.33mm) |
| features | - |
