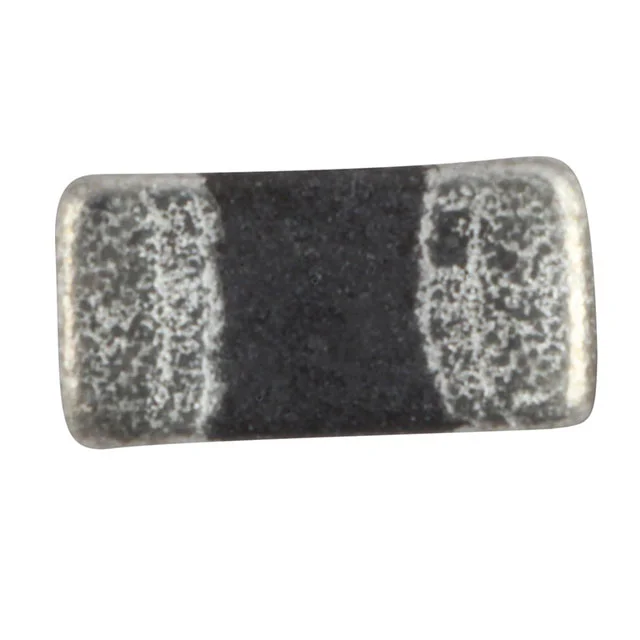

Description
FIXED IND 1UH 50MA 400 MOHM SMD
Specifications
Inductance
1 µH
Current Rating
50 mA
DC Resistance (DCR)
400mOhm Max
Dimensions
0.079" L x 0.047" W (2.00mm x 1.20mm)
Product Attributes
Manufacturer Verified
Last verified: 6/15/2026| Inductance | 1 µH |
| Tolerance | ±10% |
| Current Rating | 50 mA |
| DC Resistance (DCR) | 400mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Case / Size | 0805 (2012 Metric) |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 1UH 50MA 400 MOHM SMD |
| Series | MCQ1V2012 |
| productStatus | Active |
| typeConstruction | Multilayer |
| coreMaterial | - |
| shielding | Unshielded |
| qFactor | 35 @ 10MHz |
| selfResonantFreq | 75MHz |
| ratings | - |
| testFrequency | 10 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0805 |
| heightMax | 0.043" (1.10mm) |
| features | - |
