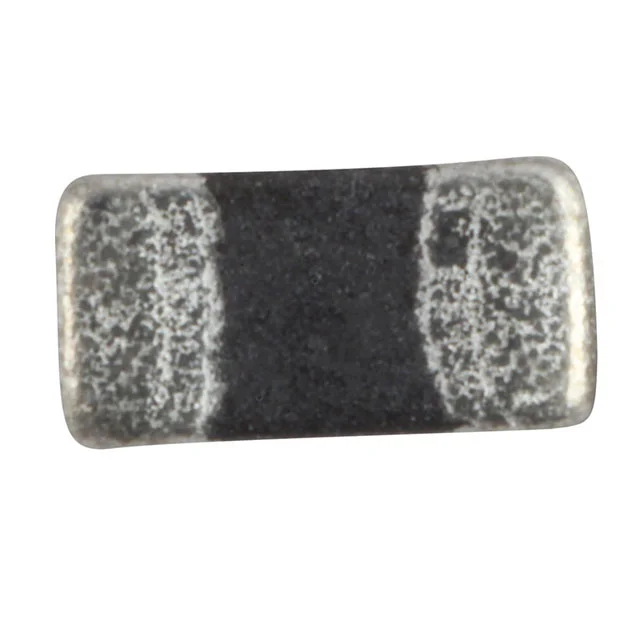

FIXED IND 1UH 100MA 300 MOHM SMD
| Inductance | 1 µH |
| Tolerance | ±10% |
| Current Rating | 100 mA |
| DC Resistance (DCR) | 300mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Case / Size | 1206 (3216 Metric) |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 1UH 100MA 300 MOHM SMD |
| Series | MCQ1V3216 |
| productStatus | Active |
| typeConstruction | Multilayer |
| coreMaterial | - |
| shielding | Unshielded |
| qFactor | 35 @ 10MHz |
| selfResonantFreq | 75MHz |
| ratings | - |
| testFrequency | 10 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 1206 |
| heightMax | 0.043" (1.10mm) |
| features | - |
