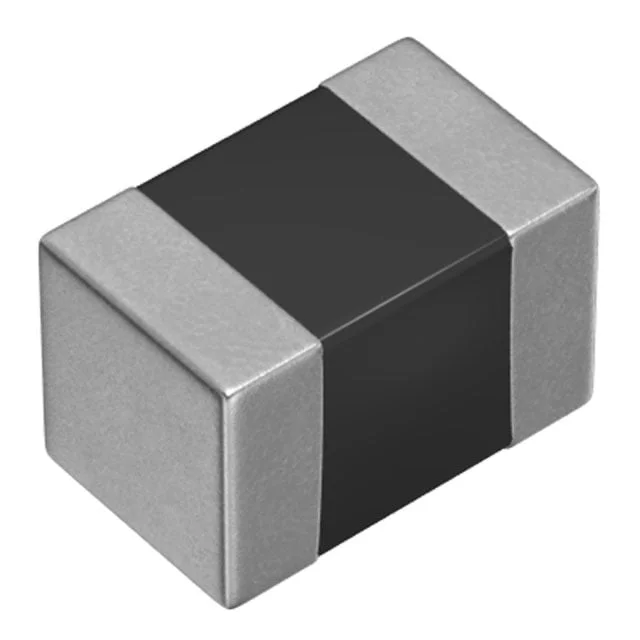

Description
FIXED IND 10UH 15MA 800 MOHM SMD
Specifications
Inductance
10 µH
Current Rating
15 mA
DC Resistance (DCR)
800mOhm Max
Dimensions
0.079" L x 0.049" W (2.00mm x 1.25mm)
Product Attributes
Manufacturer Verified
Last verified: 6/18/2026| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating | 15 mA |
| DC Resistance (DCR) | 800mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Case / Size | 0805 (2012 Metric) |
| Supplier | TDK |
| Description | FIXED IND 10UH 15MA 800 MOHM SMD |
| Series | MLF |
| productStatus | Active |
| typeConstruction | Multilayer |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 50 @ 2MHz |
| selfResonantFreq | 30MHz |
| ratings | AEC-Q200 |
| testFrequency | 2 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0805 (2012 Metric) |
| heightMax | 0.057" (1.45mm) |
| features | - |
