Description

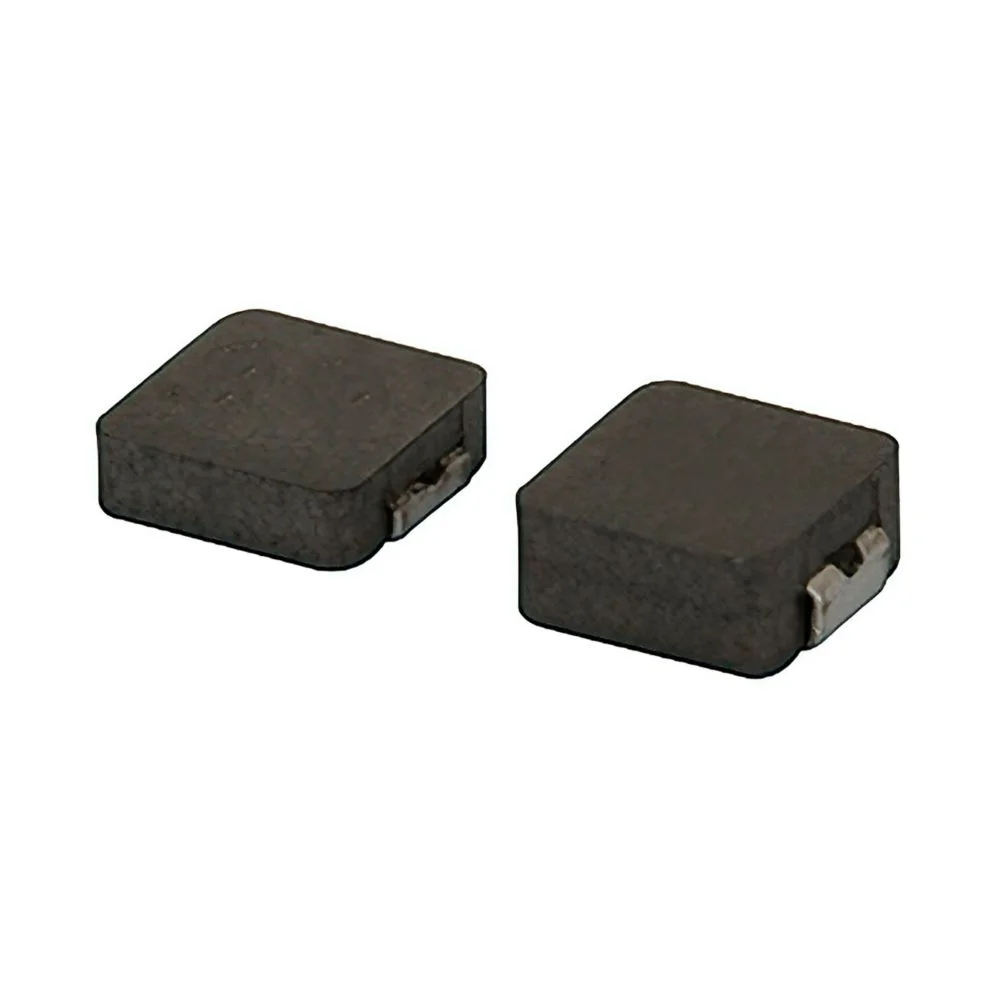

FIXED IND 330NH 9.5A 8.5 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for MPI4015V2-R33-R.
MPI4015V2-R33-R has an inductance value of 330 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
MPI4015V2-R33-R is rated for 9.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
MPI4015V2-R33-R lists a DC resistance of 8.5mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
MPI4015V2-R33-R uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from MPI4015V2-R33-R to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 330 nH |
| Tolerance | ±20% |
| Current Rating | 9.5 A |
| DC Resistance (DCR) | 8.5mOhm Max |
| Saturation Current | 11A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.173" L x 0.165" W (4.40mm x 4.20mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 330NH 9.5A 8.5 MOHM |
| Series | MPIV2 |
| Product Status | Active |
| Type / Construction | - |
| Core Material | Iron Powder |
| Shielding | Shielded |
| Q @ Frequency | - |
| Self Resonant Frequency | 120MHz |
| Ratings | - |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.059" (1.50mm) |
| Features | - |
