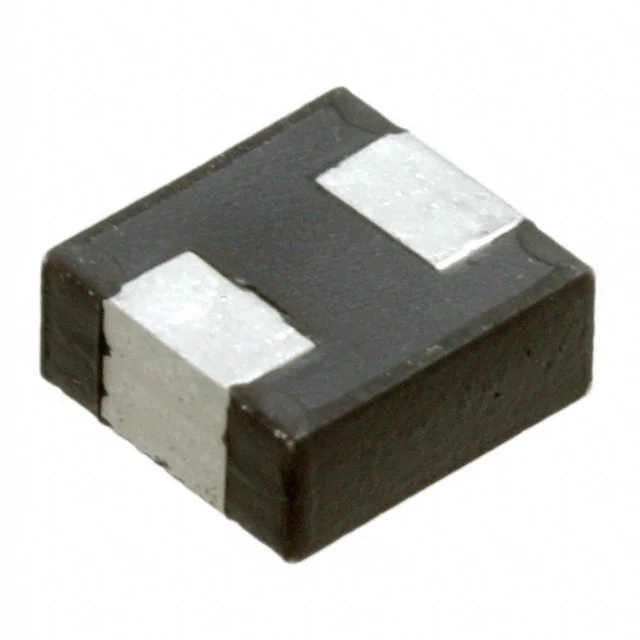

FIXED IND 2.2UH 3.9A 35 MOHM SMD
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating | 3.9 A |
| DC Resistance (DCR) | 35mOhm |
| saturationCurrent | 5.7A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.175" L x 0.160" W (4.45mm x 4.06mm) |
| Case / Size | 1816 (4540 Metric) |
| Supplier | WEC,Eaton - Electronics Division |
| Description | FIXED IND 2.2UH 3.9A 35 MOHM SMD |
| Series | MPI4040 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Metal Composite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.079" (2.00mm) |
| features | - |
