Description

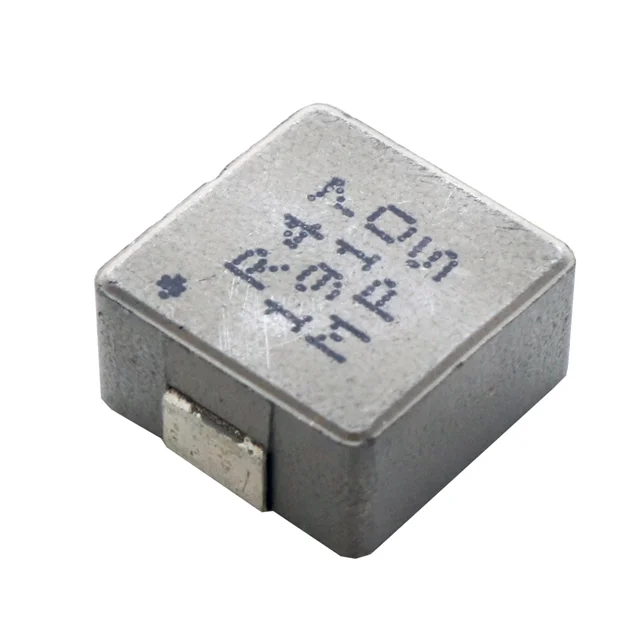

FIXED IND 820NH 27A 1.3 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for MPL-AY1265-R82.
MPL-AY1265-R82 has an inductance value of 820 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
MPL-AY1265-R82 is rated for 27 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
MPL-AY1265-R82 lists a DC resistance of 1.3mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
MPL-AY1265-R82 uses a package or case of 2-SMD, J-Lead. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from MPL-AY1265-R82 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 820 nH |
| Tolerance | - |
| Current Rating | 27 A |
| DC Resistance (DCR) | 1.3mOhm |
| Saturation Current | 46A |
| Operating Temperature | -40°C ~ 155°C |
| Dimensions | 0.531" L x 0.496" W (13.50mm x 12.60mm) |
| Case / Size | 2-SMD, J-Lead |
| Package / Case | 2-SMD, J-Lead |
| Supplier | Monolithic Power Systems Inc. |
| Description | FIXED IND 820NH 27A 1.3 MOHM SMD |
| Series | MPL-AY |
| Product Status | Active |
| Type / Construction | Molded |
| Core Material | - |
| Shielding | Unshielded |
| Q @ Frequency | - |
| Self Resonant Frequency | - |
| Ratings | - |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.256" (6.50mm) |
| Features | - |
