Description

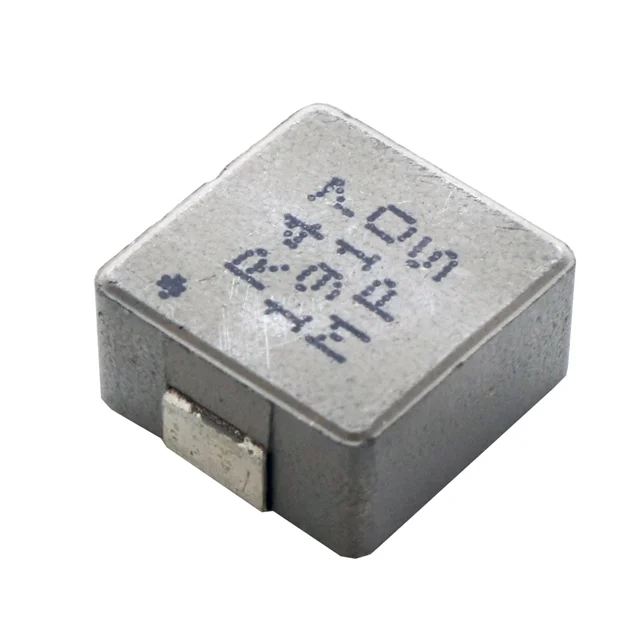

FIXED IND 3.3UH 16A 5.5 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for MPL-AY1265-3R3.
MPL-AY1265-3R3 has an inductance value of 3.3 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
MPL-AY1265-3R3 is rated for 16 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
MPL-AY1265-3R3 lists a DC resistance of 5.5mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
MPL-AY1265-3R3 uses a package or case of 2-SMD, J-Lead. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from MPL-AY1265-3R3 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 3.3 µH |
| Tolerance | - |
| Current Rating | 16 A |
| DC Resistance (DCR) | 5.5mOhm |
| Saturation Current | 25A |
| Operating Temperature | -40°C ~ 155°C |
| Dimensions | 0.531" L x 0.496" W (13.50mm x 12.60mm) |
| Case / Size | 2-SMD, J-Lead |
| Package / Case | 2-SMD, J-Lead |
| Supplier | Monolithic Power Systems Inc. |
| Description | FIXED IND 3.3UH 16A 5.5 MOHM SMD |
| Series | MPL-AY |
| Product Status | Active |
| Type / Construction | Molded |
| Core Material | - |
| Shielding | Unshielded |
| Q @ Frequency | - |
| Self Resonant Frequency | - |
| Ratings | - |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.256" (6.50mm) |
| Features | - |
