Description

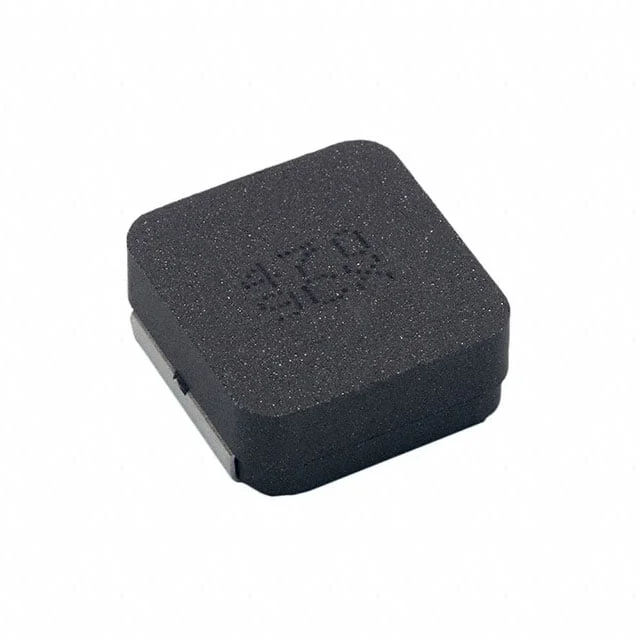

FIXED IND 470NH 34.8A 1.8 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for MPXV1D1250LR47.
MPXV1D1250LR47 has an inductance value of 470 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
MPXV1D1250LR47 is rated for 34.8 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
MPXV1D1250LR47 lists a DC resistance of 1.8mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
MPXV1D1250LR47 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from MPXV1D1250LR47 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating | 34.8 A |
| DC Resistance (DCR) | 1.8mOhm Max |
| Saturation Current | 55A |
| Operating Temperature | -55°C ~ 155°C |
| Dimensions | 0.520" L x 0.492" W (13.20mm x 12.50mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | KEMET |
| Description | FIXED IND 470NH 34.8A 1.8 MOHM |
| Series | METCOM MPXV |
| Product Status | Active |
| Core Material | Metal Composite |
| Shielding | Shielded |
| Self Resonant Frequency | 54MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.197" (5.00mm) |
