Description

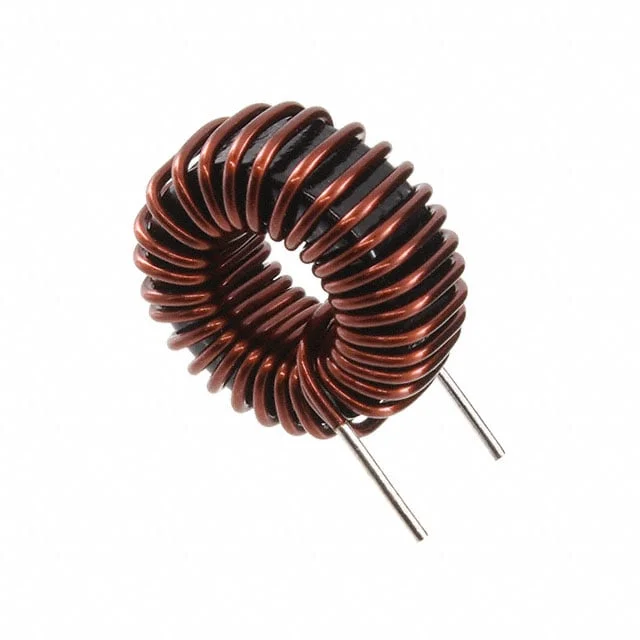

FIXED IND 13UH 500MA 95 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SNT-S30TF.
SNT-S30TF has an inductance value of 13 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SNT-S30TF is rated for 500 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SNT-S30TF lists a DC resistance of 95mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SNT-S30TF uses a package or case of Vertical, 2 PC Pin. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SNT-S30TF to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 13 µH |
| Current Rating | 500 mA |
| DC Resistance (DCR) | 95mOhm |
| Operating Temperature | -20°C ~ 60°C |
| Dimensions | 0.374" L x 0.197" W (9.50mm x 5.00mm) |
| Case / Size | Vertical, 2 PC Pin |
| Package / Case | Vertical, 2 PC Pin |
| Supplier | KEMET |
| Description | FIXED IND 13UH 500MA 95 MOHM TH |
| Series | SNT |
| Product Status | Active |
| Type / Construction | Toroidal |
| Core Material | Nickel Zinc Ferrite (NiZn) |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Through Hole |
| Supplier Device Package | Nonstandard, 2 Lead |
| Height - Seated (Max) | 0.500" (12.70mm) |
