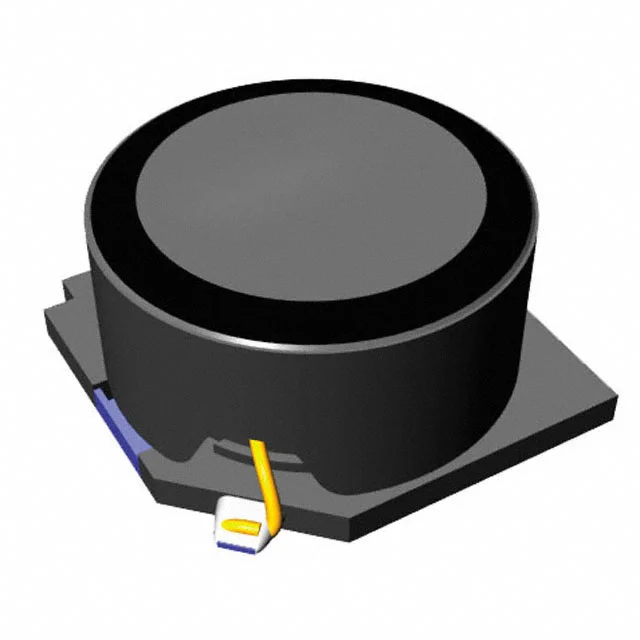

FIXED IND 2.7UH 7.69A 10.2 MOHM
| Inductance | 2.7 µH |
| Tolerance | ±30% |
| Current Rating | 7.69 A |
| DC Resistance (DCR) | 10.2mOhm Max |
| saturationCurrent | 13.91A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Case / Size | Nonstandard |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 2.7UH 7.69A 10.2 MOHM |
| Series | NS |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 55.9MHz |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.309" (7.85mm) |
| features | - |
