Description

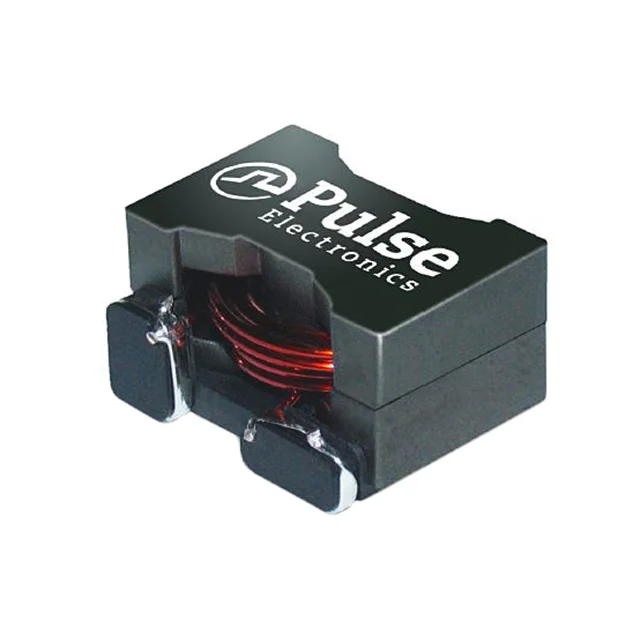

FIXED IND 38.3UH 6.5A 19.7 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PA2729.383NL.
PA2729.383NL has an inductance value of 38.3 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PA2729.383NL is rated for 6.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PA2729.383NL lists a DC resistance of 19.7mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PA2729.383NL uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PA2729.383NL to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 38.3 µH |
| Tolerance | ±15% |
| Current Rating | 6.5 A |
| DC Resistance (DCR) | 19.7mOhm Max |
| Saturation Current | 7.8A |
| Operating Temperature | -55°C ~ 130°C |
| Dimensions | 0.875" L x 0.750" W (22.23mm x 19.05mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 38.3UH 6.5A 19.7 MOHM |
| Series | PA2729.XXXNL |
| Product Status | Active |
| Type / Construction | Wirewound |
| Shielding | Shielded |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.480" (12.20mm) |
