PA2729.113NL
Pulse Electronics
- Inductance
- 10.9 µH
- Current
- 12.5 A
- DCR
- 5.8mOhm Max
- Size
- 0.875" L x 0.750" W (22.23mm x 19.05mm)
Inductor Datasheets
Browse and download PDF datasheets for inductors from leading manufacturers.
Series: PA2729.XXXNL
Browse series tables and compare the available specifications.
PA2729.XXXNL
PA2729.283NL
Pulse Electronics
- Inductance
- 28.1 µH
- Current
- 7.8 A
- DCR
- 14mOhm Max
- Size
- 0.875" L x 0.750" W (22.23mm x 19.05mm)

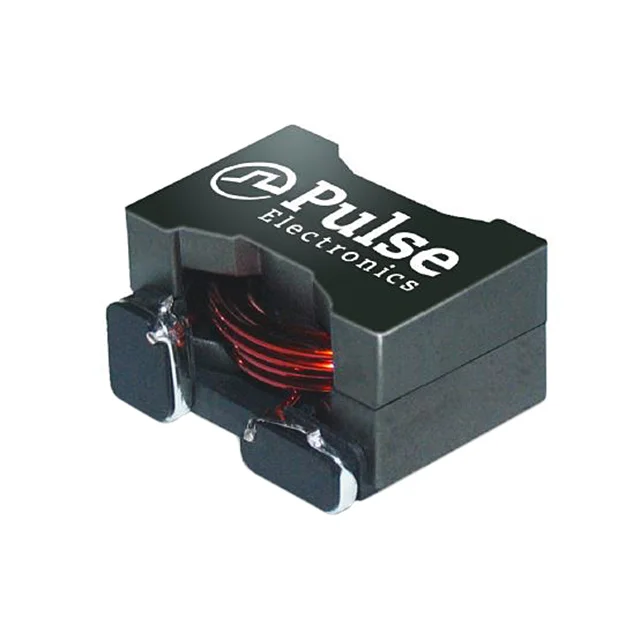

PA2729.243NL
Pulse Electronics
- Inductance
- 24.5 µH
- Current
- 8.1 A
- DCR
- 12.5mOhm
- Size
- 0.875" L x 0.750" W (22.23mm x 19.05mm)
PA2729.383NL
Pulse Electronics
- Inductance
- 38.3 µH
- Current
- 6.5 A
- DCR
- 19.7mOhm Max
- Size
- 0.875" L x 0.750" W (22.23mm x 19.05mm)
PA2729.333NL
Pulse Electronics
- Inductance
- 32.9 µH
- Current
- 6.7 A
- DCR
- 18.5mOhm Max
- Size
- 0.875" L x 0.750" W (22.23mm x 19.05mm)
PA2729.603NL
Pulse Electronics
- Inductance
- 60.3 µH
- Current
- 5.1 A
- DCR
- 31.5mOhm Max
- Size
- 0.875" L x 0.750" W (22.23mm x 19.05mm)
PA2729.203NL
Pulse Electronics
- Inductance
- 20.7 µH
- Current
- 8.5 A
- DCR
- 12mOhm
- Size
- 0.875" L x 0.750" W (22.23mm x 19.05mm)
PA2729.443NL
Pulse Electronics
- Inductance
- 44 µH
- Current
- 6.2 A
- DCR
- 21.5mOhm Max
- Size
- 0.875" L x 0.750" W (22.23mm x 19.05mm)
PA2729.173NL
Pulse Electronics
- Inductance
- 17.1 µH
- Current
- 9.9 A
- DCR
- 9.1mOhm Max
- Size
- 0.875" L x 0.750" W (22.23mm x 19.05mm)
PA2729.602NL
Pulse Electronics
- Inductance
- 6 µH
- Current
- 14.4 A
- DCR
- 4.4mOhm Max
- Size
- 0.875" L x 0.750" W (22.23mm x 19.05mm)
PA2729.802NL
Pulse Electronics
- Inductance
- 8.3 µH
- Current
- 13.3 A
- DCR
- 5.1mOhm Max
- Size
- 0.875" L x 0.750" W (22.23mm x 19.05mm)
PA2729.502NL
Pulse Electronics
- Inductance
- 4.9 µH
- Current
- 16.4 A
- DCR
- 3.4mOhm Max
- Size
- 0.875" L x 0.750" W (22.23mm x 19.05mm)
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
PA2729.113NL Pulse Electronics | 10.9 µH | 12.5 A | 5.8mOhm Max | 0.875" L x 0.750" W (22.23mm x 19.05mm) | Nonstandard | |
PA2729.283NL Pulse Electronics | 28.1 µH | 7.8 A | 14mOhm Max | 0.875" L x 0.750" W (22.23mm x 19.05mm) | Nonstandard | |
PA2729.243NL Pulse Electronics | 24.5 µH | 8.1 A | 12.5mOhm | 0.875" L x 0.750" W (22.23mm x 19.05mm) | Nonstandard | |
PA2729.383NL Pulse Electronics | 38.3 µH | 6.5 A | 19.7mOhm Max | 0.875" L x 0.750" W (22.23mm x 19.05mm) | Nonstandard | |
PA2729.333NL Pulse Electronics | 32.9 µH | 6.7 A | 18.5mOhm Max | 0.875" L x 0.750" W (22.23mm x 19.05mm) | Nonstandard | |
PA2729.603NL Pulse Electronics | 60.3 µH | 5.1 A | 31.5mOhm Max | 0.875" L x 0.750" W (22.23mm x 19.05mm) | Nonstandard | |
PA2729.203NL Pulse Electronics | 20.7 µH | 8.5 A | 12mOhm | 0.875" L x 0.750" W (22.23mm x 19.05mm) | Nonstandard | |
PA2729.443NL Pulse Electronics | 44 µH | 6.2 A | 21.5mOhm Max | 0.875" L x 0.750" W (22.23mm x 19.05mm) | Nonstandard | |
PA2729.173NL Pulse Electronics | 17.1 µH | 9.9 A | 9.1mOhm Max | 0.875" L x 0.750" W (22.23mm x 19.05mm) | Nonstandard | |
PA2729.602NL Pulse Electronics | 6 µH | 14.4 A | 4.4mOhm Max | 0.875" L x 0.750" W (22.23mm x 19.05mm) | Nonstandard | |
PA2729.802NL Pulse Electronics | 8.3 µH | 13.3 A | 5.1mOhm Max | 0.875" L x 0.750" W (22.23mm x 19.05mm) | Nonstandard | |
PA2729.502NL Pulse Electronics | 4.9 µH | 16.4 A | 3.4mOhm Max | 0.875" L x 0.750" W (22.23mm x 19.05mm) | Nonstandard |
