Description

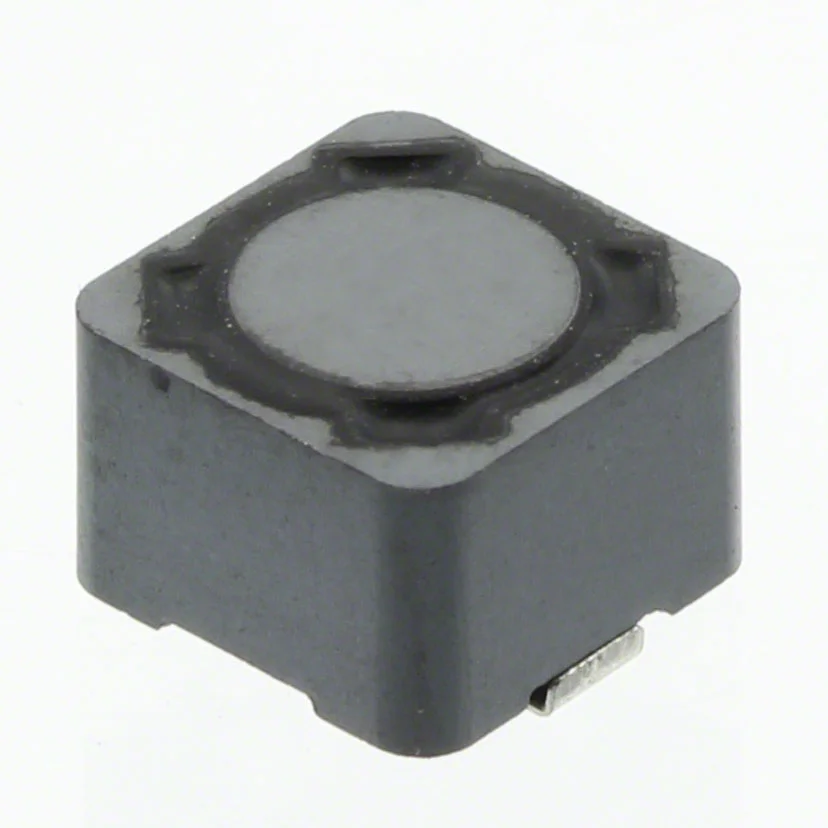

FIXED IND 10UH 3A 55 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PA4302.103NLT.
PA4302.103NLT has an inductance value of 10 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PA4302.103NLT is rated for 3 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PA4302.103NLT lists a DC resistance of 55mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PA4302.103NLT uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PA4302.103NLT to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating | 3 A |
| DC Resistance (DCR) | 55mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.295" L x 0.295" W (7.50mm x 7.50mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 10UH 3A 55 MOHM SMD |
| Series | PA4302.XXXNLT |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.220" (5.60mm) |
