Inductor Datasheets

Browse and download PDF datasheets for inductors from leading manufacturers.

Product Attributes

Pulse Electronics

1 µH• 7.5 ANonstandard

Pulse Electronics

100 µH• 1 ANonstandard

Pulse Electronics

3.3 µH• 5.6 ANonstandard

Pulse Electronics

330 µH• 500 mANonstandard

Pulse Electronics

4.7 µH• 4.8 ANonstandard

Pulse Electronics

6.8 µH• 4 ANonstandard

Pulse Electronics

68 µH• 1.2 ANonstandard

Pulse Electronics

47 µH• 1.45 ANonstandard

Pulse Electronics

10 µH• 3 ANonstandard

Pulse Electronics

220 µH• 720 mANonstandard

Product	Inductance	Current	DCR	Size	Package	Actions
PA4302.102NLT Pulse Electronics	1 µH	7.5 A	20mOhm Max	0.295" L x 0.295" W (7.50mm x 7.50mm)	Nonstandard	View PDF
PA4302.104NLT Pulse Electronics	100 µH	1 A	380.5mOhm Max	0.295" L x 0.295" W (7.50mm x 7.50mm)	Nonstandard	View PDF
PA4302.332NLT Pulse Electronics	3.3 µH	5.6 A	22.8mOhm Max	0.295" L x 0.295" W (7.50mm x 7.50mm)	Nonstandard	View PDF
PA4302.334NLT Pulse Electronics	330 µH	500 mA	1.34Ohm Max	0.295" L x 0.295" W (7.50mm x 7.50mm)	Nonstandard	View PDF
PA4302.472NLT Pulse Electronics	4.7 µH	4.8 A	26.8mOhm Max	0.295" L x 0.295" W (7.50mm x 7.50mm)	Nonstandard	View PDF
PA4302.682NLT Pulse Electronics	6.8 µH	4 A	36.8mOhm Max	0.295" L x 0.295" W (7.50mm x 7.50mm)	Nonstandard	View PDF
PA4302.683NLT Pulse Electronics	68 µH	1.2 A	265mOhm Max	0.295" L x 0.295" W (7.50mm x 7.50mm)	Nonstandard	View PDF
PA4302.473NLT Pulse Electronics	47 µH	1.45 A	185mOhm Max	0.295" L x 0.295" W (7.50mm x 7.50mm)	Nonstandard	View PDF
PA4302.103NLT Pulse Electronics	10 µH	3 A	55mOhm Max	0.295" L x 0.295" W (7.50mm x 7.50mm)	Nonstandard	View PDF

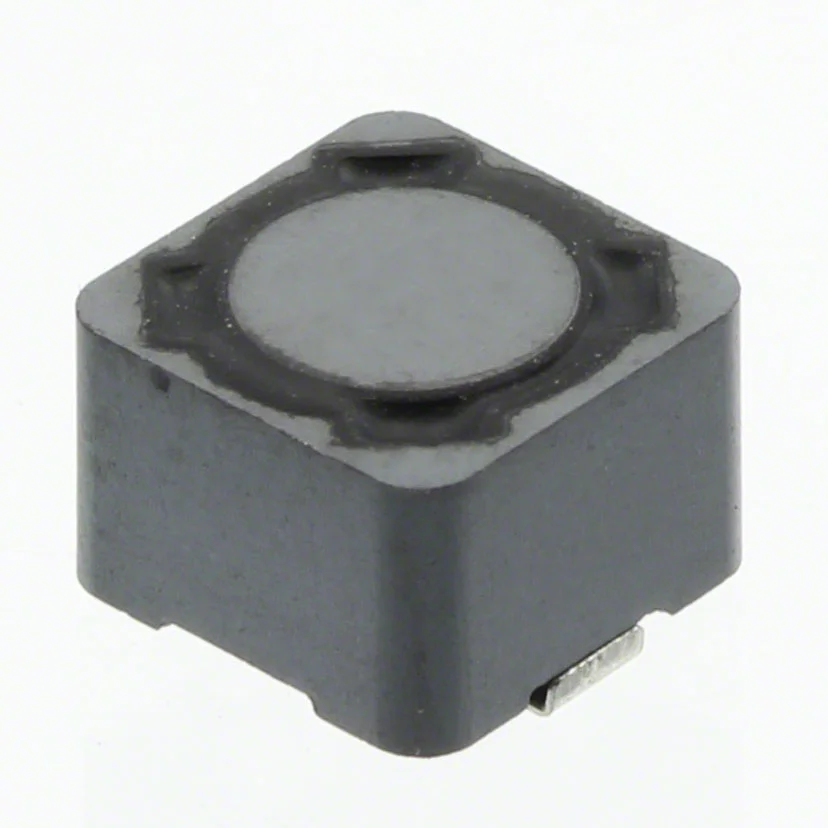

PA4302.224NLT Pulse Electronics	220 µH	720 mA	765mOhm Max	0.295" L x 0.295" W (7.50mm x 7.50mm)	Nonstandard	View PDF
