Description

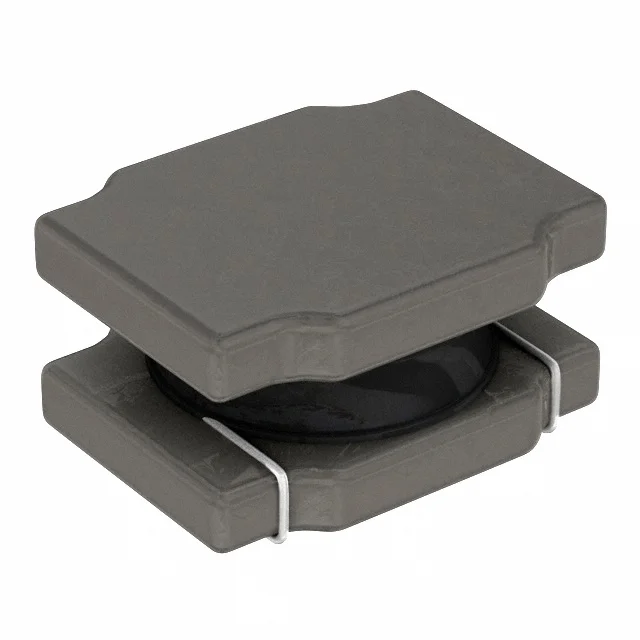

FIXED IND 680NH 2.8A 65 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PA4330.681NLT.
PA4330.681NLT has an inductance value of 680 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PA4330.681NLT is rated for 2.8 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PA4330.681NLT lists a DC resistance of 65mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PA4330.681NLT uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PA4330.681NLT to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 680 nH |
| Tolerance | ±20% |
| Current Rating | 2.8 A |
| DC Resistance (DCR) | 65mOhm Max |
| Saturation Current | 3.5A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.087" L x 0.071" W (2.20mm x 1.80mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 680NH 2.8A 65 MOHM SMD |
| Series | PA4330.XXXNLT |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Self Resonant Frequency | 77MHz |
| Inductance Test Frequency | 1 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.039" (1.00mm) |
