Description

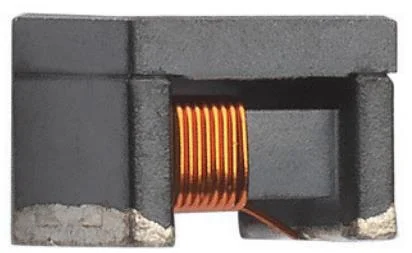

FIXED IND 2.2UH 1.9A 130 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PCA1V3230-2R2-R.
PCA1V3230-2R2-R has an inductance value of 2.2 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PCA1V3230-2R2-R is rated for 1.9 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PCA1V3230-2R2-R lists a DC resistance of 130mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PCA1V3230-2R2-R uses a package or case of 1210 (3225 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PCA1V3230-2R2-R to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating | 1.9 A |
| DC Resistance (DCR) | 130mOhm Max |
| Saturation Current | 2.2A |
| Operating Temperature | -55°C ~ 140°C |
| Dimensions | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Case / Size | 1210 (3225 Metric) |
| Package / Case | 1210 (3225 Metric) |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 2.2UH 1.9A 130 MOHM |
| Series | PCA1V3230 |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Self Resonant Frequency | 300MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1210 |
| Height - Seated (Max) | 0.126" (3.20mm) |
