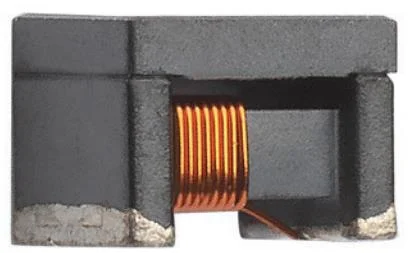

FIXED IND 10UH 1.3A 150 MOHM SMD
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating | 1.3 A |
| DC Resistance (DCR) | 150mOhm Max |
| saturationCurrent | 450mA |
| Operating Temperature | -55°C ~ 150°C |
| Dimensions | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Case / Size | 1210 (3225 Metric) |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 10UH 1.3A 150 MOHM SMD |
| Series | PCA2V3223 |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 1210 |
| heightMax | 0.098" (2.50mm) |
| features | - |
