Description

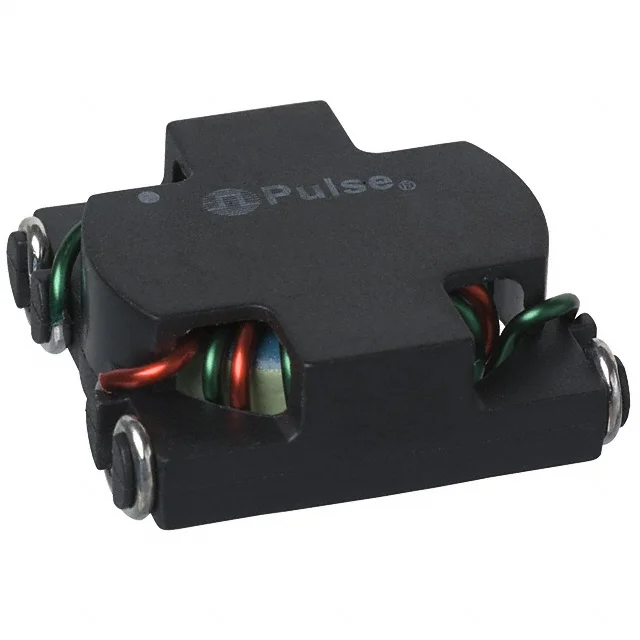

FIXED IND 2.1UH 22.4A 3.4 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PE-53363NL.
PE-53363NL has an inductance value of 2.1 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PE-53363NL is rated for 22.4 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PE-53363NL lists a DC resistance of 3.4mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PE-53363NL uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PE-53363NL to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 2.1 µH |
| Current Rating | 22.4 A |
| DC Resistance (DCR) | 3.4mOhm Max |
| Operating Temperature | -40°C ~ 130°C |
| Dimensions | 1.110" L x 1.000" W (28.19mm x 25.40mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 2.1UH 22.4A 3.4 MOHM |
| Series | SLIC |
| Product Status | Active |
| Type / Construction | Toroidal |
| Shielding | Unshielded |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.390" (9.91mm) |
