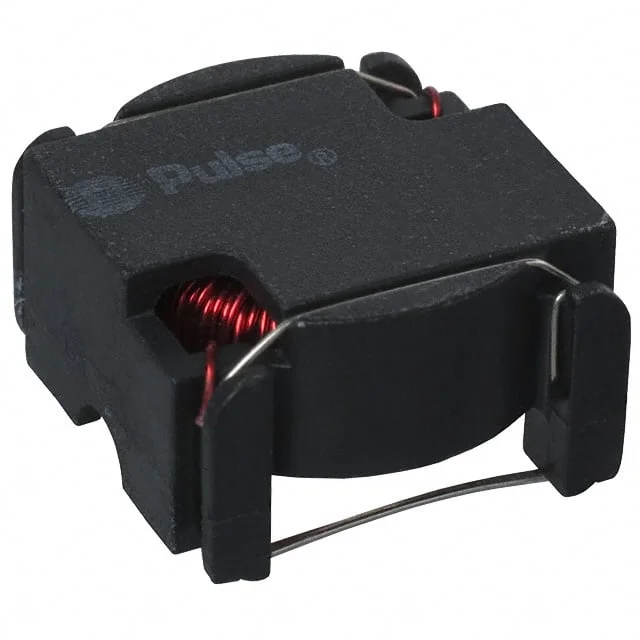

FIXED IND 5.1UH 5.4A 17.7 MOHM
| Inductance | 5.1 µH |
| Tolerance | - |
| Current Rating | 5.4 A |
| DC Resistance (DCR) | 17.7mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 130°C |
| Dimensions | 0.570" L x 0.565" W (14.48mm x 14.35mm) |
| Case / Size | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 5.1UH 5.4A 17.7 MOHM |
| Series | SLIC |
| productStatus | Obsolete |
| typeConstruction | Toroidal |
| coreMaterial | - |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | - |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.360" (9.14mm) |
| features | - |
