Description

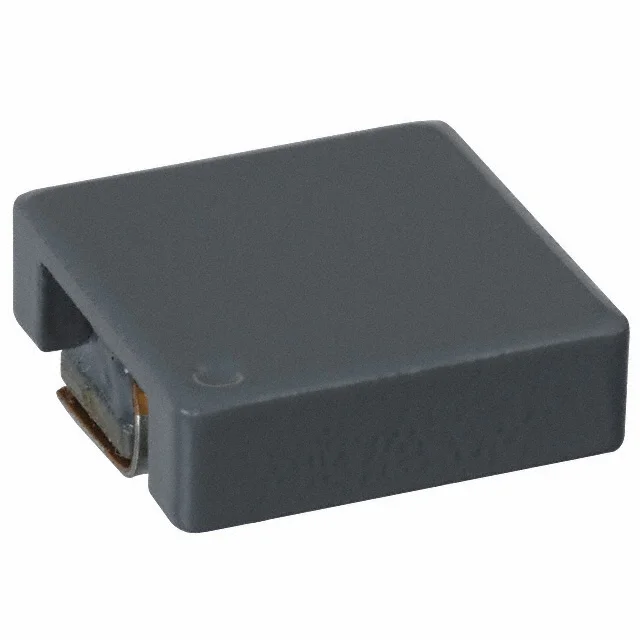

FIXED IND 670NH 23A 1.4 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM12639S-R67M.
PM12639S-R67M has an inductance value of 670 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM12639S-R67M is rated for 23 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM12639S-R67M lists a DC resistance of 1.4mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM12639S-R67M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM12639S-R67M to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 670 nH |
| Tolerance | ±20% |
| Current Rating | 23 A |
| DC Resistance (DCR) | 1.4mOhm Max |
| Operating Temperature | -40°C ~ 150°C |
| Dimensions | 0.547" L x 0.531" W (13.90mm x 13.50mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 670NH 23A 1.4 MOHM SMD |
| Series | PM12639S |
| Product Status | Obsolete |
| Type / Construction | Wirewound |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.146" (3.70mm) |
