Description

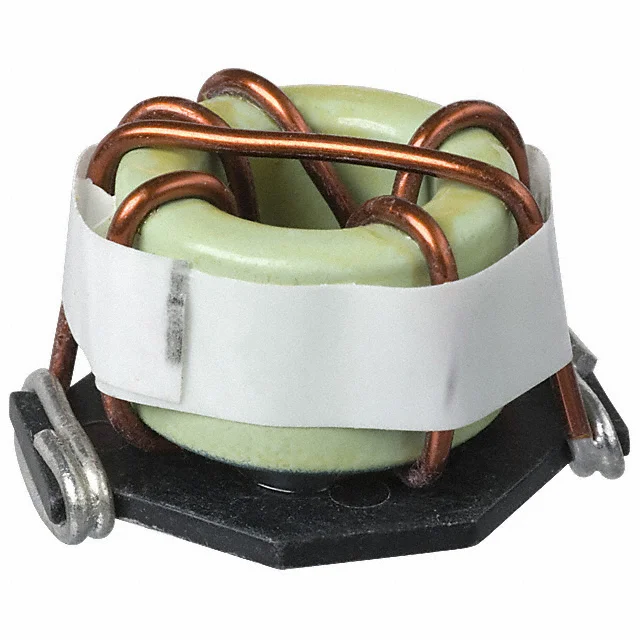

FIXED IND 3.9UH 18A 4 MOHM SMD
Specifications
Inductance
3.9 µH
Current Rating
18 A
DC Resistance (DCR)
4mOhm Max
Dimensions
1.201" L x 1.000" W (30.50mm x 25.40mm)
Product Attributes
Manufacturer Verified
Last verified: 6/11/2026| Inductance | 3.9 µH |
| Tolerance | ±20% |
| Current Rating | 18 A |
| DC Resistance (DCR) | 4mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 1.201" L x 1.000" W (30.50mm x 25.40mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 3.9UH 18A 4 MOHM SMD |
| Series | PM2120 |
| productStatus | Active |
| typeConstruction | Toroidal |
| coreMaterial | Iron |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.820" (20.83mm) |
| features | - |
