Description

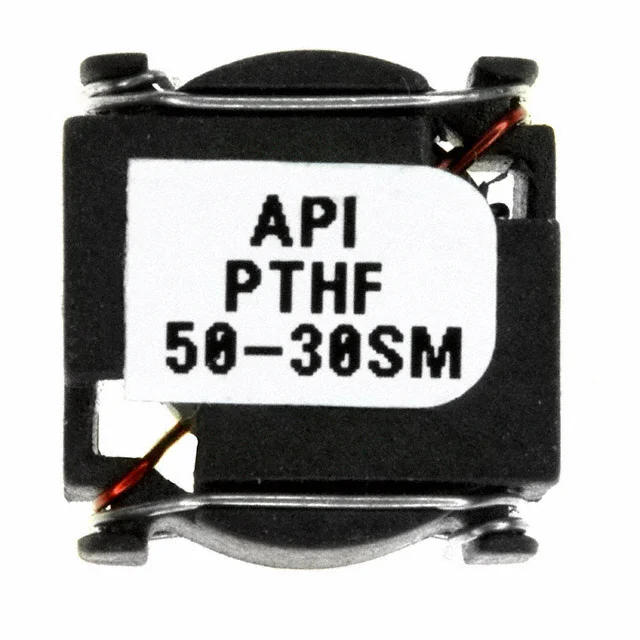

FIXED IND 50UH 1.81A 100 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PTHF50-30SM.
PTHF50-30SM has an inductance value of 50 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PTHF50-30SM is rated for 1.81 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PTHF50-30SM lists a DC resistance of 100mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PTHF50-30SM uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PTHF50-30SM to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 50 µH |
| Tolerance | ±10% |
| Current Rating | 1.81 A |
| DC Resistance (DCR) | 100mOhm Max |
| Dimensions | 0.440" L x 0.440" W (11.18mm x 11.18mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 50UH 1.81A 100 MOHM |
| Series | PTHF |
| Product Status | Active |
| Type / Construction | Toroidal |
| Shielding | Shielded |
| Self Resonant Frequency | 10MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.400" (10.16mm) |
